266-6942 Pump GP-Main Hydraulic for CAT 304C 305D CR 2666942
Item No.: 266-6942
Product Description

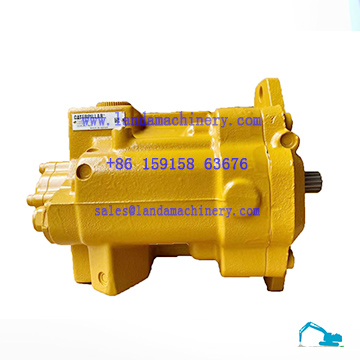

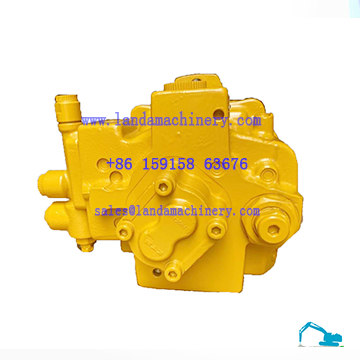

266-6942 Pump GP-Main Hydraulic for Excavator CAT 304C 305D CR 2666942
304C 305D Excavator Main Pump Hydraulic
| 205-6883 | [1] | BOLT (M10X1.25X55-MM) | 279-4683 | [1] | BEARING |
| 266-6942 Y | [1] | PUMP GP-MAIN HYDRAULIC | 191-3925 | [1] | BEARING |
| 267-1082 | [1] | COUPLING-PUMP | 279-4684 L | [1] | SEAL |
| 281-8127 | [1] | HOUSING-FLYWHEEL | 6V-7723 | [1] | RING-RETAINING |
| 127-4839 M | [2] | BOLT (M10X1.25X25-MM) | 279-4685 | [1] | SHAFT |
| 128-7747 M | [2] | BOLT (M10X1.25X40-MM) | 191-3918 | [1] | WASHER |
| 191-7503 M | [3] | BOLT (M12X1.75X16-MM) | 191-3920 | [1] | WASHER |
| 8T-4121 | [7] | WASHER-HARD (11X21X2.5-MM THK) | 279-4686 L | [1] | GASKET |
| 8T-7338 M | [2] | BOLT (M16X2X45-MM) | 279-4687 | [3] | PIN |
| 9X-8257 | [2] | WASHER (17.5X30X3.5-MM THK) | 279-4688 | [2] | BUSHING |
| 9X-8912 M | [3] | BOLT (M10X1.25X30-MM) | 139-7355 | [2] | SCREW |
| 198-4777 | [1] | WASHER-HARD (11X25X10-MM THK) | 279-4689 | [1] | PLATE |
| 279-4692 | [1] | STOPPER | 280-0395 | [1] | PIN |
| 279-4693 | [1] | PIN | 095-1575 JLN | [8] | SEAL-O-RING |
| 280-0396 | [1] | SPRING | 279-4691 | [1] | ORIFICE |
Excavator Spare Parts for CAT Mini Crawler Digger Repair Service
CAT 301.5 301.7 302CR 303.5E 302.5, 305, 305.5, 305.5E2 306 306.5 307, 307.5 307C, 307D, 307E, 308, 308.5 310 312, 312B, 312C, 312D, 313, 313D 313D2 313D2L GC, 313D2GC 314DCR 315, 315B, 315CL 315D 316, 317, 318, 318D 318D2L 319D 320A 320, 320B, 320C, 320CR 320CU 320D, 320GC 320D2, 320D2GC 320V, 320V2, 320E, 320EL 321D 323GC 323 324D, 324E, 325C, 325D 326 326D2 326GC 315C, 330C, 330GC 315D
