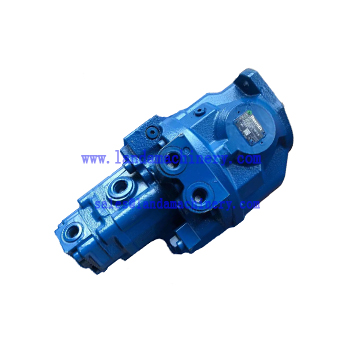

Kubota RC51161115 U30 U35 U35-3 Mini Excavator Hydraulic Pump
Item No.: RC51161115
Product Description
Kubota RC51161115 U30 U35 U35-3 Mini Excavator Hydraulic Pump
kubota excavator hydraulic pump
A. Part Name: Hydraulic Piston Pump
- Part Number: Kubota RC511-61115
- Application: U30 U35 U35-3 U35S U35-3S mini Excavator
D. Application: Kubota Excavator Engine Power Take-Off
E. Performance: Excavator Main Hydraulic Pump
F. Packaging Details: Bag / Box/ Carton

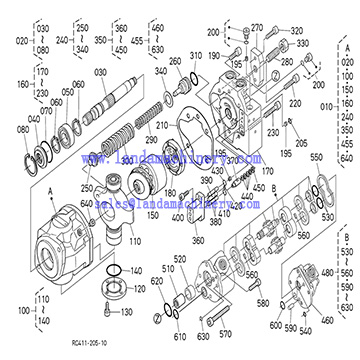

| 01311-11050 | [1] | BOLT,SOCKET HEAD | RC511-61112 | [1] | ASSY PUMP,PISTON |
| 01311-11055 | [1] | BOLT,SOCKET HEAD | RC511-61115 | [1] | ASSY PUMPPISTON |
| RC411-76350 | [1] | ASSY SPRING | RC411-76310 | [1] | ASSY SHAFT |
| RP421-79130 | [1] | SEAT, SPRING | RC411-76312 | [1] | ASSY SAHFT |
| RC411-79140 | [1] | SEAT, SPRING | RC411-79010 | [1] | SHAFT |
| RC441-79150 | [1] | COVER | RP421-79020 | [1] | CASE,SEAL |
| RP421-79160 | [1] | SCREW, ADJUST | RP421-79022 | [1] | CASE, SEAL |
| RC411-79170 | [1] | SPRING | RP421-79030 | [1] | BEARING |
| RP421-79180 | [1] | SPRING | 04612-00250 | [2] | CIR-CLIP,EXTERNAL |
| 04811-00300 | [1] | O RING | RP421-79040 | [1] | O RING |
| 01311-10830 | [2] | BOLT,SOCKET HEAD | RP421-79042 | [1] | O-RING |
| RP421-79190 | [1] | NUT | 04611-00360 | [1] | CIR-CLIP, INTERNAL |
| RP421-79200 | [1] | SHIM | RP421-76320 | [1] | ASSY HOUSING |
| RP421-79210 | [1] | SHIM | RP421-79060 | [1] | HANGER |
| RP421-79220 | [1] | SHIM | RP421-79070 | [1] | COVER |
| RC511-76360 | [1] | ASSY PISTON | 01311-10616 | [4] | BOLT,SOCKET HEAD |
| RC411-79230 | [1] | CYLINDER | 04811-50550 | [1] | O RING |
| RC511-79240 | [1] | PISTON | RP421-76330 | [1] | ASSY ROTARY |
| RP421-79250 | [2] | PIN, STRAIGHT | RC411-76340 | [1] | ASSY COVER |
| RC411-79260 | [1] | PIN, STRAIGHT | RC411-76342 | [1] | ASSY COVER |
| 01311-10825 | [2] | BOLT,SOCKET HEAD | RC411-79080 | [1] | COVER |
| RP421-79270 | [1] | O-RING | RP421-79090 | [1] | PLATE, CONTROL |
| RP421-79280 | [1] | O-RING | 01311-11030 | [3] | BOLT,SOCKET HEAD |
| RP421-79290 | [1] | O-RING | RC441-79100 | [3] | ORIFICE |
| RP421-79300 | [3] | SPRING, PLATE | RP421-79100 | [3] | PLUG |
| RP421-79310 | [1] | SEAT SPRING | 04810-00080 | [1] | O-RING |
| RC511-76372 | [1] | ASSY PUMP,GEAR | RC441-79450 | [1] | O-RING |
| RC511-76375 | [1] | ASSY PUMP, GEAR | RP421-79110 | [1] | GASKET |
| RC411-79323 | [1] | ASSY PUMP, GEAR | 01311-11025 | [2] | BOLT,SOCKET HEAD |
| RC541-79330 | [1] | HOUSING | RC411-79470 | [2] | PIN, STRAIGHT |
| RC411-79410 | [1] | COUPLING | RC411-79480 | [1] | O-RING |
| RC411-79420 | [1] | BUSH | RC411-79490 | [1] | O RING |
| RP421-79430 | [2] | O-RING | RC411-79492 | [1] | O-RING |
| RC441-79430 | [1] | O RING | RC411-79500 | [1] | O RING |
| RP421-79440 | [1] | SQUARE, RING | RC411-79502 | [1] | O-RING |
| RP421-79450 | [2] | SQUARE RING | 04817-00100 | [1] | O RING |
| 01311-11080 | [4] | BOLT,SOCKET HEAD | RC411-76430 | [1] | PLUG |
